Dynawrap Joy 1550
Heavy-Duty Large Format Orbital Ring Stretch Wrapper
The Dynawrap Joy 1550 is explicitly engineered to cover 100% of standard US cabinet sizes and 4x8 sheet goods. By integrating a massive 1550mm wrapping ring and heavy-duty 900mm wide belt conveyors, this machine is the ultimate cost-effective solution for North American cabinetry, office credenzas, assembled furniture, and wide-panel manufacturers looking to automate their end-of-line packaging.
Need complex line integration? Compare this to our customized Pro Series 1400.
See the Joy 1550W for hybrid packaging.
View U.S. dimension compatibility below.
Exceeding 58.7 Inches? Don't Leave.
The Joy 1550 easily clears 48-inch boards and standard cabinets. However, if your payloads (like oversized garage doors or extra-wide panels) exceed 1490mm (58.7") in width, please scale up to our Dynawrap Pro 1700 to prevent side-frame collisions.
Included Standard Features
Pre-program custom wrap recipes. Operators tap the Beijer touchscreen to instantly auto-adjust tension, RPM, and film overlap. Zero guesswork.
Integrated remote tech support access for instant factory-level PLC troubleshooting and updates.
Inverter-controlled rotation and conveyor belts allow you to perfectly tune film overlap and match upstream line speeds.
Pneumatic top-press stabilization paired with hands-free film termination and a highly reliable constant tensioning system.
Universal, Non-Proprietary Components
We refuse to trap you in a proprietary parts ecosystem. The Joy 1550 is powered by an industry-standard Beijer PLC (Sweden) and built with globally sourced, off-the-shelf Tier-1 components (Schneider Electric, Omron). If a part is ever damaged on your floor, your maintenance team can source the exact replacement locally the same day. No black-box motherboards. No forced shipping delays. Absolute, cost-effective uptime.
Quality Assurance & Commissioning: Pre-shipment video verification / Factory Acceptance Testing (FAT) available upon request for automated cell integrations. Every system ships with a full digital commissioning packet to streamline electrical and PLC deployment.
Common Joy 1550 Applications
Easily clears fully assembled base cabinets, wall cabinets, and custom bathroom vanities.
Perfectly sized for full sheets of plywood, drywall, MDF, and decorative wall panels.
High-volume encapsulation for fully built commercial desks, office credenzas, and large-format tables.
Wide structural insulated panels (SIP), rigid foam blocks, and insulated metal panels.
Heavy Flat-Pack Furniture Packaging
The Challenge: For furniture and cabinetry manufacturers, keeping corrugated cardboard edge-protectors perfectly aligned during the packaging phase is a massive challenge. Hand-wrapping often causes the cardboard to slip, leaving vulnerable wood corners exposed to transit damage.
The Solution: The Dynawrap Joy 1550 perfectly securing a heavy, large-format furniture bundle straight from the factory floor.
-
No Top-Press Needed: The high-traction motorized infeed belt effortlessly drives the heavy, 6-foot furniture bundle into the 1550mm orbital ring with zero load shifting, completely eliminating the need for top-down pressure.
-
Flawless Edge Protection: The machine applies perfectly calibrated cross-directional tension, locking the cardboard casing directly to the wooden core so it won't slip during transit.
-
360° Underside Security: The high-speed orbital cycle ensures total surface encapsulation, protecting the bottom edges and corners just as tightly as the top.
See this automated cell in action: Read the complete Furniture & Cabinetry Automation Guide →
Locks cardboard to core.
Friction-free belt drive.
Flawless underside wrap.
Ergonomic Cabinet Packaging with Pop-Up Staging
The Challenge: Applying corrugated edge guards to the bottom corners of heavy cabinetry is notoriously difficult and ergonomically taxing for operators while the product sits flat on a conveyor belt.
The Solution: We engineered this Dynawrap Joy 1550 with an integrated pneumatic pop-up staging column built directly into the motorized infeed conveyor. The system features:
- Effortless Edge-Guarding: At the push of a button, the cabinet is lifted into the air, allowing operators to easily slide edge protectors onto the bottom corners.
- 1-Touch Recipe Automation: Once lowered flush with the table, the operator initiates a pre-programmed wrapping cycle perfectly tuned for the cabinet dimensions.
- Synchronized Press & Wrap: Dual pneumatic top-down presses secure the edge guards in place while the 1550mm ring applies high-tension stretch film.
Fast edge-guard application.
Eliminates awkward lifting.
1-touch HMI automation.
See this automated cell in action: Read the complete Furniture & Cabinetry Automation Guide.
Fenestration: Glass Doors & Window Frames
The Challenge: Shipping heavy, metal-framed exterior glass doors and premium window assemblies requires intense surface protection. However, standard top-down presses can apply too much pressure on delicate frames or unsupported glass, leading to shattering or scuffed finishes.
-
Glass-Safe Stabilization: Heavy exterior doors remain perfectly stable on the high-traction belts alone, while lightweight window frames are gently secured using specialized non-marring pneumatic presses.
-
Precision Tension: The massive 1550mm orbital ring applies a mathematically consistent, high-tension wrap that protects the glass and prevents painted or powder-coated metal frames from scratching during transit.
-
Fully Automated Finish: The cycle concludes with the automatic film cutting and clamping arm, delivering a pristine product without manual intervention.
See these automated cells in action: Read the complete Windows & Fenestration Automation Guide →
Non-marring pressure.
Zero frame scratching.
Automated film clamping.
Dynawrap LUMI™ 3D Algorithmic Vision (Optional)
Achieve true recipe-free autonomy with highly stable, non-black-box architecture. The optional LUMI™ System utilizes an Intel® depth-sensing 3D camera and a dedicated embedded controller housed in an industrial enclosure. As product enters the zone, the system executes volumetric scanning to determine exact geometry. The algorithm then automatically calculates and pushes the optimal wrapping parameters directly to the PLC. Operators simply select 'Optimum' or 'Heavy' protection modes, and the machine handles the rest.
Engineered for EHS Safety & Operator Ergonomics
EHS-Compliant Dynamic Tensioning (CTS): A major EHS challenge when wrapping oversized products is maintaining consistent film tension across highly varied bundle widths; sudden tension spikes can cause heavy panels to shift unexpectedly, creating severe crush hazards. The Joy 1550 solves this with a spring-based Constant Tensioning System (CTS). This mechanical stretch ring dynamically adjusts force during rotation, adding tension only where the film gets loose to ensure a tight, professional wrap on massive panels - keeping the load perfectly stable and isolating operators from the active packaging zone.
The Economics of Automation
By replacing inconsistent manual hand-wrapping with mechanized tension control, this system ensures every millimeter of stretch film is utilized to its maximum yield. Reduce your film consumption by up to 25% while eliminating the ergonomic liabilities, transit damage, and labor hours associated with manual load securing.
Recommended Stretch Film
The massive ring of the Joy 1550 is optimized for 10" (250mm) Cast Clear Machine Film for maximum efficiency. For wrapping heavy furniture or raw wood components, we highly recommend upgrading to High-Performance Blown Film for superior tear resistance.
| Technical Specifications |
| Machine Features | |
| Automation Level | Fully Automatic / PLC Controlled |
| Wrapping Ring Diameter (Net Passing) | 1550 mm (61.0") |
| Standard Dimensions (W x H x L) | 2200 x 2850 x 4000 mm (86.6" x 112.2" x 157.5") |
| Max Rotation Speed | 70 RPM |
| Film Delivery System | Mechanical Stretch (50-70%) with Spring-Based Constant Tensioning System (CTS) |
| Tension Control Advantage | Automated slack compensation prevents corner-crush on rectangular and irregular profiles |
| Total Weight | 1120 kg (2,469 lbs) |
| Installed Total Power | 2.25 kW |
| Power Supply Voltage | 220V 3-Phase / 380V 3P+N / 480V 3-Phase |
| Approx. Full Load Amps (FLA) | 8.5A-10A (220V) / 5A-5.8A (380V) / 4A-4.6A (480V) |
| Pneumatic Air Requirements | Operating Pressure: 6 Bar (87 PSI) | Peak Consumption: ~30 L/min (~1.0 CFM) |
| Industrial Control & Systems Integration Specifications | |
| PLC / HMI / Drivers | Standard: Beijer Electronics (Sweden) | Options: Siemens, Allen-Bradley (Rockwell Automation), or Beckhoff (Flexible architecture based on project requirements) |
| 3D Algorithmic Vision (Optional) | LUMI™ System: Intel® 3D Depth-Sensing Camera with Embedded Logic Controller | Executes volumetric dimensional scanning and automatically pushes optimized wrapping parameters to the PLC. |
| Fault Detection & Predictive Maintenance | Predictive Maintenance Diagnostics: Network access to VFD status/faults, motor speeds, current loads, heater temperatures, and cycle counters. Stretch Secure System (Optional): Auto-stops on film break. Film Warning System (Optional): Pre-alerts for zero-downtime roll changes. |
| ERP & WMS Integration (Optional) | String-Based Data Exchange: Receive production orders, barcode data, and shipping labels via standard protocols. Labeling System: Scans bare product and auto-reprints identical barcode on exterior stretch film for ASRS induction. |
| Integration Protocols (SI Ready) | EtherNet/IP, PROFINET, EtherCAT, Modbus TCP, native OPC UA, MQTT |
| SCADA / MES Connectivity | Native OPC UA Server capabilities for direct machine data access without external gateways (PLC dependent). |
| Cloud Telemetry | MQTT-based communication for Industry 4.0 applications (Machine status, production statistics, film consumption, alarm history). |
| Robot Arm Compatibility | Direct Handshake Ready for FANUC, ABB, KUKA, Universal Robots (UR), and Yaskawa Industrial & Collaborative Arms |
| Robotic Cell Handshakes | Ready, Start, Busy, Complete, Fault, Product Present Confirmation, Wrapped-Ready Signal, Reject Bypass Mode, Remote Mode (Master Override) |
| Safety Architecture | CIP Safety, PROFIsafe, Robot-Safe Hardwired I/O Interlocks, Light Curtain & Safety Scanner Integration |
| Commissioning Packet | Included: Full Electrical Schematics (PDF & CAD), I/O List, PLC Tag Map, Robot Handshake Documentation, Ethernet Object Map, PLC/HMI Source Code Backups |
| Conveyor Drive System | Belt-Driven Motorized Infeed & Outfeed Conveyors synchronized via Variable Frequency Drives (VFD) for Speed Matching |
| Standard Automation Module | Automatic Film Clamp & Cut | Mechanical Tensioner | Remote Diagnostics Enabled |
| Motors / Reducers | Volt Motor (TR) / Yilmaz or Polat (TR) |
| Motorized Belt Conveyor System | Megadyne (Italy) |
| Safety / Protection | Schneider Electric (E-Stop, Contactor, SSR) |
| Power Supply | Omron (Japan) |
| Sensors | Pepperl+Fuchs (Germany) |
| Certifications & Standards | ISO 13849-1 (PLd) Compliant | cULus Listed | CSA Approved | CE Certified |
| Product Size To Pack | |
| Max Length | No Limit |
| Min Length with Bridge | 400 mm (15.7") |
| Max Passing Dimensions | Panel: Max W: 1490 mm (58.7") | H: 200 mm (7.9")
Cabinet: W: 1000 mm (39.5") | Max H: 900 mm (35.0")
|
| Conveyor Belt Features | |
| Conveyor Belt Length | 1800 mm (70.8") |
| Conveyor Belt Width | 900 mm (35.4") Standard | 1100 mm (43.3") Optional | 1300 mm (51.1") Upgraded Wide Belt |
| Max Conveyor Speed | 12 m/min (39.3 ft/min) |
| Max Load Capacity | 80 kg/m (~54 lbs/ft) Standard Belt Rating | Conveyor structure and load capacity are fully upgradeable to heavy-duty steel slat, chain, or powered roller variants for extreme weight requirements. |
| Conveyor Roller Material Upgrades | Vulkollan Polyurethane (Extreme load/anti-abrasion) | Non-Marring Rubber (High grip/delicate finishes) | Galvanized or Stainless Steel (Heavy industrial payloads) |
| Product Centering & Alignment | Adjustable Side Guide Rollers available in manual (fixed) or fully automated pneumatic configurations for zero-touch product centering. |
| End-of-Line Conveyor Safety | Optional Outfeed Photoeye Sensor (Automatically halts the conveyor drive to prevent wrapped products from overrunning the discharge table) |
| Working Height (Adjustable) | 800 - 880 mm (31.5" - 34.6") | Custom Heights Fully Engineered to Match Robotic Cells & Automated Lines |
| Stretch Film (PE/PVC) Specs | |
| Max Film Roll Exterior Diameter | 200 mm (7.8") |
| Roll Core Diameter | 76 mm (3") |
| Stretch Film Width Compatibility | 250 mm (10") |
| Recommended Film Thickness | 47 gauge (12 micron), 60 gauge (15 micron), 70 gauge (17 micron), 90 gauge (23 micron), 120 gauge (30 micron), 140 gauge (35 micron) |
| Max Roll Weight | 4.8 kg (10.5 lbs) |
| *125mm/170mm (5" / 6.7") rolls can also be used | |
U.S. Cabinetry Dimension Compatibility
The massive 1550mm wrapping ring easily clears oversized 4x8 flat-packs and extra-wide casework. Below is the exact fitment guide for large-format North American cabinetry standards.
Oversized Cabinets That FIT
- Oversized Bathroom Vanities:
18", 21", & 24" Depths (Up to 48" Width) - Tall Pantries & Office Casework:
24" Depth (Up to 48" Width) - 4x8 Sheet Goods:
Standard 48" Wide Panels - Standard Kitchen Cabinets:
100% of Base, Wall, & Garage Sizes
Note: The minimum wrapping length (cabinet height passing through) must be at least 25" (635 mm) when running 21" or 24" depths.
Mega-Format Cabinets That DO NOT FIT
- Double Vanity Casework: 60" Widths
- Oversized Closets: 60" Widths

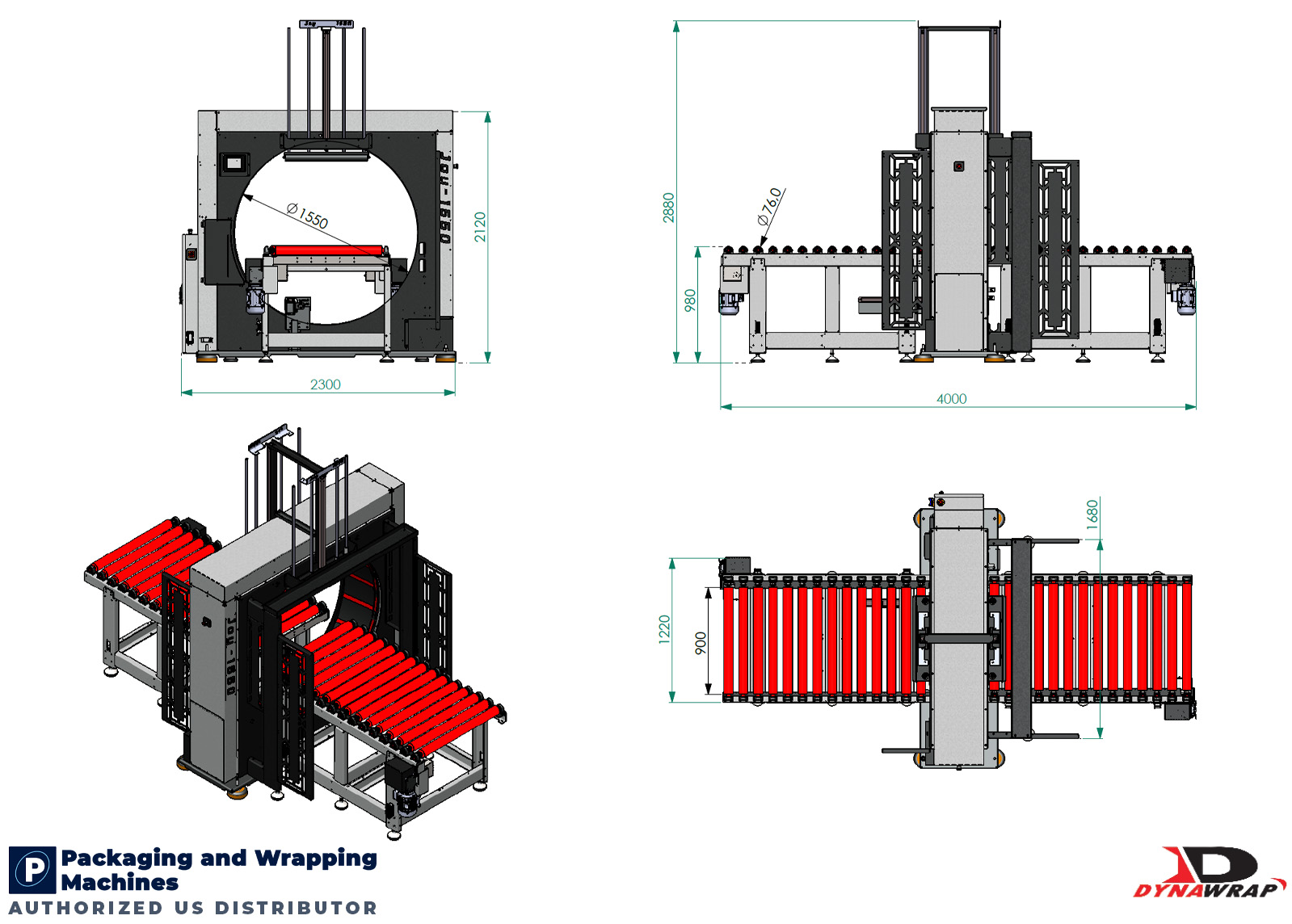

Review the true operational dimensional footprint below. Note that while base-frame shipping dimensions are often smaller, the data below represents the absolute maximum clearance required during full operation, including fully raised pneumatic presses and safety framing.
- Absolute Line Length (Infeed to Outfeed): 4,000 mm (157.5")
- Absolute Operational Width: 2,300 mm (90.6") *+100mm frame clearance
- Max Machine Height (Top-Press Extended): 2,800 mm (110.2")
- Base Frame Height (Excluding Top Press): 2,150 mm (84.6")
- Roller Conveyor Working Width: 900 mm (35.4")
- Overall Conveyor Table Width: 1,220 mm (48.0")
- Conveyor Roller Diameter: 76 mm (3.0")
- Outfeed Safety Framing Width: 1,680 mm (66.1")
*Note: The 1550mm diameter represents the net functional passing ring limit. The conveyor height shown in this heavy-duty roller configuration drawing is fixed at a nominal 980mm (38.6") but remains fully adaptable via heavy-duty leveling feet.

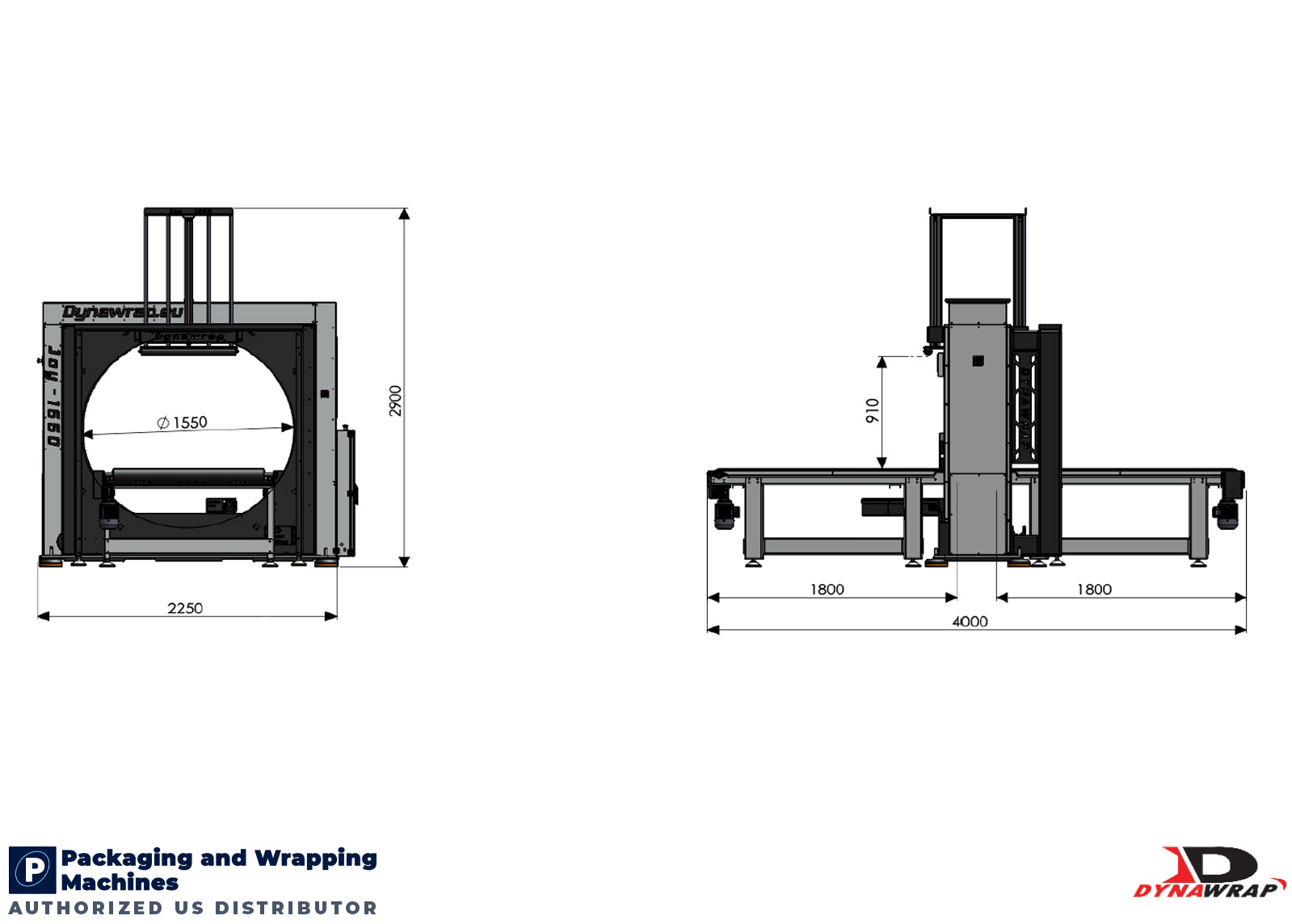

- Absolute Line Length (Infeed to Outfeed): 4,000 mm (157.5")
- Absolute Operational Width: 2,250 mm (88.6") *+50mm frame clearance
- Max Machine Height (Top-Press Extended): 2,900 mm (114.2")
- Conveyor Belt Working Width: 1,300 mm (51.2")
- Individual Conveyor Table Length: 1,800 mm (70.9")
- Max Product Clearance Height (Belt to Ring): 910 mm (35.8")
*Note: The 1550mm diameter represents the net functional passing ring limit. This configuration illustrates the heavy-duty 1300mm wide motorized belts optimized for oversized flat-bottomed products.
Factory Warranty & Lifecycle Architecture: Every system ships with an industry-standard 1-Year Comprehensive Systems Warranty. More importantly, because we refuse to trap customers in proprietary parts ecosystems, all electrical, pneumatic, and automation controls are built exclusively with open-market Tier-1 components (Schneider Electric, Omron, Beijer, Pepperl+Fuchs). Replacement parts can be sourced locally same-day for the entire operational lifespan of the machine. Review our direct-to-human SLA and service protocol
Dynawrap Joy 1550 Technical FAQ
What are the maximum object dimensions the Dynawrap Joy 1550 can wrap?
The Joy 1550 handles a maximum passing width of 1490 mm (58.7") and a maximum passing height of 910 mm (35.8"). This easily accommodates standard 48-inch (4x8) plywood sheets and fully assembled kitchen base cabinets. For oversized garage doors or extra-wide panels exceeding 58.7", you must scale up to the Pro 1700.
What are the exact facility power and pneumatic requirements for the Joy 1550?
The machine requires an installed total power of 2.25 kW and supports 220V 3-Phase, 380V 3P+N, or 480V 3-Phase facility wiring. The pneumatic auto-cut and top-down press units require a continuous operating pressure of 6 Bar (87 PSI) with a peak air consumption of ~30 L/min (~1.0 CFM).
What conveyor modules are available for the Joy 1550?
The standard machine includes VFD-synchronized motorized belt conveyors that are 1800 mm (70.8") long and 900 mm (35.4") wide, with an 1100 mm (43.3") width option. The system can be upgraded to heavy-duty powered steel rollers, flat-top chains, or steel slat modules for heavier industrial loads.
How does the machine handle PLC handshakes with robotic automation cells?
Equipped with a standard Beijer PLC, the Joy 1550 provides native EtherNet/IP, PROFINET, Modbus TCP, and OPC UA protocols for direct network integration. The system features pre-mapped digital I/O handshakes (such as Product Present and Wrapped-Ready) for direct compatibility with FANUC, ABB, and KUKA robotic arms.
What standard cabinet sizes fit in the Dynawrap Joy 1550?
The massive 1550mm ring easily accommodates oversized bathroom vanities, tall pantries, and office casework up to 48 inches wide (at 18-inch, 21-inch, and 24-inch depths). It also effortlessly clears all standard kitchen base and wall cabinets.
Which cabinets are too large for the Joy 1550?
Any double-vanity casework or flat-pack panel 60 inches wide or larger will not fit through the Joy 1550. For 60-inch extra-wide casework, you must upgrade to the Pro 1700 or Pro 1900 depending on the cabinet's depth.
Is the Dynawrap Joy 1550 UL and CSA listed?
Yes, all electrical panels and components are fully cULus and CSA certified for North American facility integration.
