Dynawrap Pro 1700
The Maximum-Format Orbital Solution for Oversized Industrial Loads
The Dynawrap Pro 1700 is engineered for manufacturers whose products push the limits of standard logistics. Featuring a massive 1.7-meter internal ring, this system is the primary choice for 60-inch wide architectural glazing, oversized prefab wall sections, and heavy-duty industrial crates.
When high-volume production meets extreme product dimensions, the Pro 1700 delivers the structural integrity required to maintain consistent tension and wrap quality on every cycle.
Need extra protection? Check out the Dynawrap Pro 1700W for integrated bubble wrap capabilities.
EHS-Mandated Operator Protection:
The Pro 1700 is engineered to instantly satisfy corporate safety audits, uniquely equipped with built-in lateral safety fencing on both sides of the wrapping ring. This integrated steel frame provides a critical EHS barrier without increasing the footprint, ensuring safe hazard isolation in high-traffic 24/7 manufacturing environments.
Constant Tensioning System (CTS)
A major challenge when wrapping oversized products is maintaining consistent film tension across highly varied bundle widths. The Pro 1700 features a spring-based Constant Tensioning System (CTS). This mechanical stretch ring (yielding 50-70% pre-stretch) dynamically adjusts force during rotation, adding tension where the film gets loose to ensure a tight, professional wrap on massive panels and bulky cabinets alike.
Included Standard Features CE Certified
Pre-program custom wrap recipes. Operators tap the Beijer touchscreen to instantly auto-adjust tension, RPM, and film overlap. Zero guesswork.
Integrated remote tech support access for instant factory-level PLC troubleshooting and updates.
Heavy-duty 1200mm wide belt system driven by Variable Frequency Drives (VFD) for seamless upstream line speed-matching.
Reinforced pneumatic stabilization paired with heavy-duty automated film termination and standard lateral steel safety fencing.
Universal, Non-Proprietary Components
We refuse to trap you in a proprietary parts ecosystem. The Pro-Series is built entirely with globally sourced, off-the-shelf Tier-1 components (Schneider Electric, Omron, Pepperl+Fuchs). If a sensor or contactor is ever damaged, your maintenance team can source the exact replacement at your local electrical supply house the same day. No black-box motherboards. No forced overseas shipping delays. Absolute uptime.
Quality Assurance & Commissioning: Pre-shipment video verification / Factory Acceptance Testing (FAT) available upon request for automated cell integrations. Every system ships with a full digital commissioning packet to streamline electrical and PLC deployment.
Forklift-Integrated Orbital Wrapping: The Pro 1700 Solution
The Challenge: High-volume beverage and bottling facilities often struggle with the "last mile" of load stability. Standard wrappers require dropping the pallet, wrapping, and re-lifting - adding minutes to every cycle and increasing the risk of spillages.
The Solution: The Dynawrap Pro 1700 allows the forklift operator to remain in the cab throughout the entire process. This "Drive-Through" configuration features:
- Dual-Arm Performance: Two high-speed film carriages working in tandem to provide 2x the wrap speed and superior containment force.
- Remote Fob Activation: The operator triggers the orbital ring via remote, maintaining full control of the pallet’s movement through the wrap zone.
- Heavy-Duty Guarding: Reinforced steel safety frames engineered to withstand the rigors of high-traffic forklift environments.
- Precision Film Cutters: Automated dual-cutting arms ensure a clean finish on every pallet without manual intervention.
The Result: A seamless, high-speed wrapping cycle that eliminates extra handling and ensures bottled goods are secured with 360-degree orbital protection.
Wrap while on the forks.
Double the throughput speed.
Built for forklift environments.
Engineered for performance. Supported locally by our Atlanta team.
Orbital Wrapping vs. Traditional Turntables
The Challenge: Traditional turntable pallet wrappers require spinning the entire load to apply stretch film. For top-heavy products, fragile assemblies, or oversized pallets, this centrifugal force causes the load to shift, slide, or even topple off the turntable before it can be secured.
The Solution: The Dynawrap Pro 1700 completely re-engineers pallet wrapping by keeping the load perfectly stationary.
- Zero Centrifugal Stress: The massive 1700mm ring rotates around the pallet at 55 RPM. Because the pallet never spins, there is absolutely zero risk of the product shifting or collapsing during the cycle.
- Pallet-to-Product Bonding: The orbital ring passes directly underneath the pallet's carriage, applying high-tension film that deeply unitizes the product directly to the wooden skid, preventing dangerous transit sheer.
- Infinite Length Capability: Turntables are strictly limited by their base plate diameter. The Pro 1700's pass-through conveyor design effortlessly handles extra-long or irregularly shaped pallets that would otherwise overhang and clip a traditional wrapper's mast.
No spinning or tipping.
Locks product to the skid.
Not limited by turntable size.
Ideal for oversized fulfillment, heavy manufacturing, and fragile logistics.
Explore enterprise pallet wrapping: Read the complete Orbital Pallet Wrapping & Zero-Drop Automation Guide →
Dynawrap LUMI™ 3D Algorithmic Vision (Optional)
Achieve true recipe-free autonomy with highly stable, non-black-box architecture. The optional LUMI™ System utilizes an Intel® depth-sensing 3D camera and a dedicated embedded controller housed in an industrial enclosure. As product enters the zone, the system executes volumetric scanning to determine exact geometry. The algorithm then automatically calculates and pushes the optimal wrapping parameters directly to the PLC. Operators simply select 'Optimum' or 'Heavy' protection modes, and the machine handles the rest.
Common Pro 1700 Applications
Extra-wide timber frame and light-gauge steel wall panels
Full-width commercial and industrial 60" sectional doors
Large format refrigeration panels and air handling cabinetry
Executive boardroom tables and oversized architectural cabinetry
Engineered for EHS Safety & Operator Simplicity
Reduce training liabilities. Operators simply tap the HMI screen and the PLC automatically adjusts tension, RPM, and overlap for specific products. No manual tuning required while the machine is running.
By automating the film clamping, cutting, and conveying process, the Pro 1700 entirely eliminates the repetitive strain injuries (RSI) associated with manual warehouse wrapping operations.
Recommended Stretch Film
The Pro 1700 is optimized for High-Tension Cast Machine Film to secure heavy-duty industrial loads without breakage.For sharp-edged metal or wood bundles, we recommend High-Performance Blown Film for superior puncture resistance.
The Economics of Automation
By replacing inconsistent manual hand-wrapping with mechanized tension control, this system ensures every millimeter of stretch film is utilized to its maximum yield. Reduce your film consumption by up to 25% while eliminating the ergonomic liabilities, transit damage, and labor hours associated with manual load securing.
| Technical Specifications |
| Machine Features | |
| Automation Level | Fully Automatic / PLC Controlled |
| Wrapping Ring Diameter | 1700 mm (66.9") |
| Standard Dimensions (W x H x L) | 2470 x 2300 x 4000 mm (97.2" x 90.5" x 157.5") |
| Max Rotation Speed | 55 RPM |
| Film Delivery System | Mechanical Stretch (50-70%) with Spring-Based Constant Tensioning System (CTS) |
| Tension Control Advantage | Automated slack compensation prevents corner-crush on rectangular and irregular profiles |
| Total Weight | 1480 kg (3,262 lbs) |
| Installed Total Power | 3 kW |
| Power Supply Voltage | 220V 3-Phase / 380V 3P+N / 480V 3-Phase |
| Approx. Full Load Amps (FLA) | 11.5A-13A (220V) / 6.5A-7.5A (380V) / 5.5A-6A (480V) |
| Pneumatic Air Requirements | Operating Pressure: 6 Bar (87 PSI) | Peak Consumption: ~30 L/min (~1.0 CFM) |
| Industrial Control & Systems Integration Specifications | |
| PLC / HMI / Drivers | Standard: Beijer Electronics (Sweden) | Options: Siemens, Allen-Bradley (Rockwell Automation), or Beckhoff (Flexible architecture based on project requirements) |
| 3D Algorithmic Vision (Optional) | LUMI™ System: Intel® 3D Depth-Sensing Camera with Embedded Logic Controller | Executes volumetric dimensional scanning and automatically pushes optimized wrapping parameters to the PLC. |
| Fault Detection & Predictive Maintenance | Predictive Maintenance Diagnostics: Network access to VFD status/faults, motor speeds, current loads, heater temperatures, and cycle counters. Stretch Secure System: Auto-stops on film break. Film Warning System: Pre-alerts for zero-downtime roll changes. |
| ERP & WMS Integration (Optional) | String-Based Data Exchange: Receive production orders, barcode data, and shipping labels via standard protocols. Labeling System: Scans bare product and auto-reprints identical barcode on exterior stretch film for ASRS induction. |
| Integration Protocols (SI Ready) | EtherNet/IP, PROFINET, EtherCAT, Modbus TCP, native OPC UA, MQTT |
| Robot Arm Compatibility | Direct Handshake Ready for FANUC, ABB, KUKA, Universal Robots (UR), and Yaskawa Industrial & Collaborative Arms |
| Robotic Cell Handshakes | Ready, Start, Busy, Complete, Fault, Product Present Confirmation, Wrapped-Ready Signal, Reject Bypass Mode, Remote Mode (Master Override) |
| Safety Architecture | CIP Safety, PROFIsafe, Robot-Safe Hardwired I/O Interlocks, Light Curtain & Safety Scanner Integration |
| Commissioning Packet | Included: Full Electrical Schematics (PDF & CAD), I/O List, PLC Tag Map, Robot Handshake Documentation, Ethernet Object Map, PLC/HMI Source Code Backups |
| Conveyor Drive System | Belt-Driven Motorized Infeed & Outfeed Conveyors synchronized via Variable Frequency Drives (VFD) for Speed Matching |
| Standard Automation Module | Automatic Film Clamp, Cut, & Wipe-Down | Remote Diagnostics Enabled |
| Motors / Reducers | Volt Motor (TR) / Yilmaz or Polat (TR) |
| Motorized Belt Conveyor System | Megadyne (Italy) |
| Safety / Protection | Schneider Electric (E-Stop, Contactor, SSR) |
| Power Supply | Omron (Japan) |
| Sensors | Pepperl+Fuchs (Germany) |
| Product Size To Pack | |
| Max. Length | No Limit |
| Min. Length with Bridge | 750 mm (29.5") |
| Max Passing Dimensions | Max W: 1580 mm (62.2") | H: 400 mm (15.7")
W: 1100 mm (43.3") | Max H: 950 mm (37.4")
|
| Conveyor Belt Features | |
| Conveyor Belt Length | 1800 mm (70.8") |
| Conveyor Belt Width | 1300 mm (51.1") |
| Max. Conveyor Speed | 12 m/min |
| Max Load Capacity | 100 kg/m (~67 lbs/ft) Standard Belt Rating | Conveyor structure and load capacity are fully upgradeable to heavy-duty steel slat, chain, or powered roller variants for extreme weight requirements. |
| Conveyor Roller Material Upgrades | Vulkollan Polyurethane (Extreme load/anti-abrasion) | Non-Marring Rubber (High grip/delicate finishes) | Galvanized or Stainless Steel (Heavy industrial payloads) |
| Product Centering & Alignment | Adjustable Side Guide Rollers available in manual (fixed) or fully automated pneumatic configurations for zero-touch product centering. |
| End-of-Line Conveyor Safety | Optional Outfeed Photoeye Sensor (Automatically halts the conveyor drive to prevent wrapped products from overrunning the discharge table) |
| Working Height (Adjustable) | 800 - 900 mm (31.5" - 35.4") | Custom Heights Fully Engineered to Match Robotic Cells & Automated Lines |
| Stretchfilm (PE/PVC) Specs | |
| Max. Film Reel Exterior Diameter | 230 mm (9") |
| Reel Core Diameter | 76 mm (3") |
| Max. Exterior Width | 250 mm (10") |
| Recommended Thickness | 15 micron (59 gauge), 17 micron (67 gauge), 20 micron (80 gauge), 23 micron (90 gauge), 30 micron (118 gauge), 35 micron (138 gauge) |
| Max. Reel Weight | 6.5 kg (14.3 lbs) |
| *125/170mm (5" / 6.7") reels can also be used | |

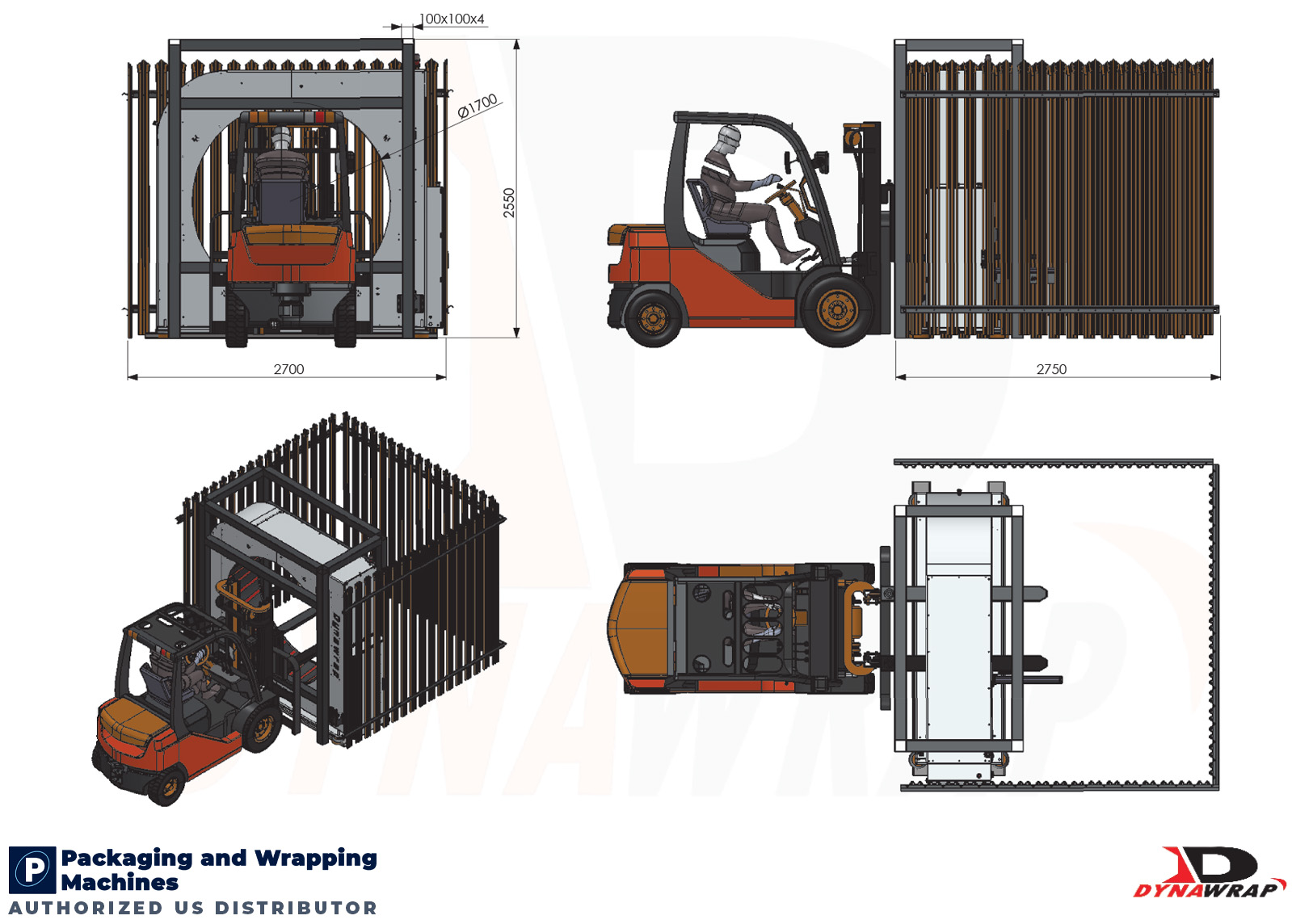

Review the dimensional footprint and forklift loading integration below. This specific blueprint details a direct-load configuration (excluding standard conveyors), engineered with heavy-duty safety guarding. This allows forklift operators to safely insert large profiles directly into the wrapping ring.
- Total Safety Cell Width (incl. fencing): 2,700 mm (106.3")
- Total Safety Cell Depth (incl. fencing): 2,750 mm (108.2")
- Impact Guard Structural Profile: 100 x 100 x 4 mm heavy-wall steel tubing
- Core Chassis Height: 2,250 mm (88.5")*
*Note: Blueprint displays core structural height (2,250 mm). Standard catalog specification (2,300 mm) accounts for top-mast hardware clearance.
Factory Warranty & Lifecycle Architecture: Every system ships with an industry-standard 1-Year Comprehensive Systems Warranty. More importantly, because we refuse to trap customers in proprietary parts ecosystems, all electrical, pneumatic, and automation controls are built exclusively with open-market Tier-1 components (Schneider Electric, Omron, Beijer, Pepperl+Fuchs). Replacement parts can be sourced locally same-day for the entire operational lifespan of the machine. Review our direct-to-human SLA and service protocol
