Automated Stretch Wrapping for Lumber, Decking & Engineered Wood
Secure heavy timber, dimensional lumber, composite siding, MDF, 16-foot plywood stacks, oversized cross-sections, and massive 6x6 timbers. Eliminate snapped metal strapping and the severe centrifugal limits of traditional turntables with massive, continuous-flow orbital packaging cells capable of handling loads up to 20 feet long or more. Providing robust construction with heavy gauge steel and precise pre-stretch carriages, our systems secure heavy, shifting lumber bundles far better than basic forklift-loaded wrappers. Featuring native ERP and WMS connectivity (via OPC UA, MQTT, and EtherNet/IP) for total traceability and real-time predictive maintenance diagnostics.
Explore the Core Technology: View our complete lineup of Horizontal & Orbital Stretch Wrapping Machines.
The Damage Bottleneck: The "Spearing" Effect & Edge Crush
Wholesale yards lose thousands of dollars weekly to product rejection. When steel strapping is ratcheted down on dimensional lumber or heavy timbers, it crushes the outer corners. Worse, banding alone doesn't secure the center of the stack - allowing inner boards of heavy, shifting lumber bundles to slide out like spears during hard braking in transit. *(Need to secure wide, brittle building panels? View our wrapper solutions for Drywall, Gypsum & Plasterboard).*
The Solution: The Dynawrap Pro 1900 replaces metal banding entirely. As the massive bundle enters the ring, heavy-duty pneumatic top pressers clamp the wood down perfectly flat. The orbital ring utilizes a pre-stretch carriage with adjustable tension to apply a high-containment web of multi-layer stretch film, unitizing the heavy load flawlessly without edge damage, and completely eliminating the spearing effect.
The Length Bottleneck: Turntables & Forklift Wrappers
Traditional pallet wrappers fundamentally fail in the lumber industry. You cannot place a 16-foot stack of 2x4s or a massive sheet of MDF onto a spinning turntable. Furthermore, entry-level orbital machines that require the load to "never leave the forklift forks" tie up valuable equipment and operators for minutes at a time while struggling to stabilize very long lumber (8′–20′+).

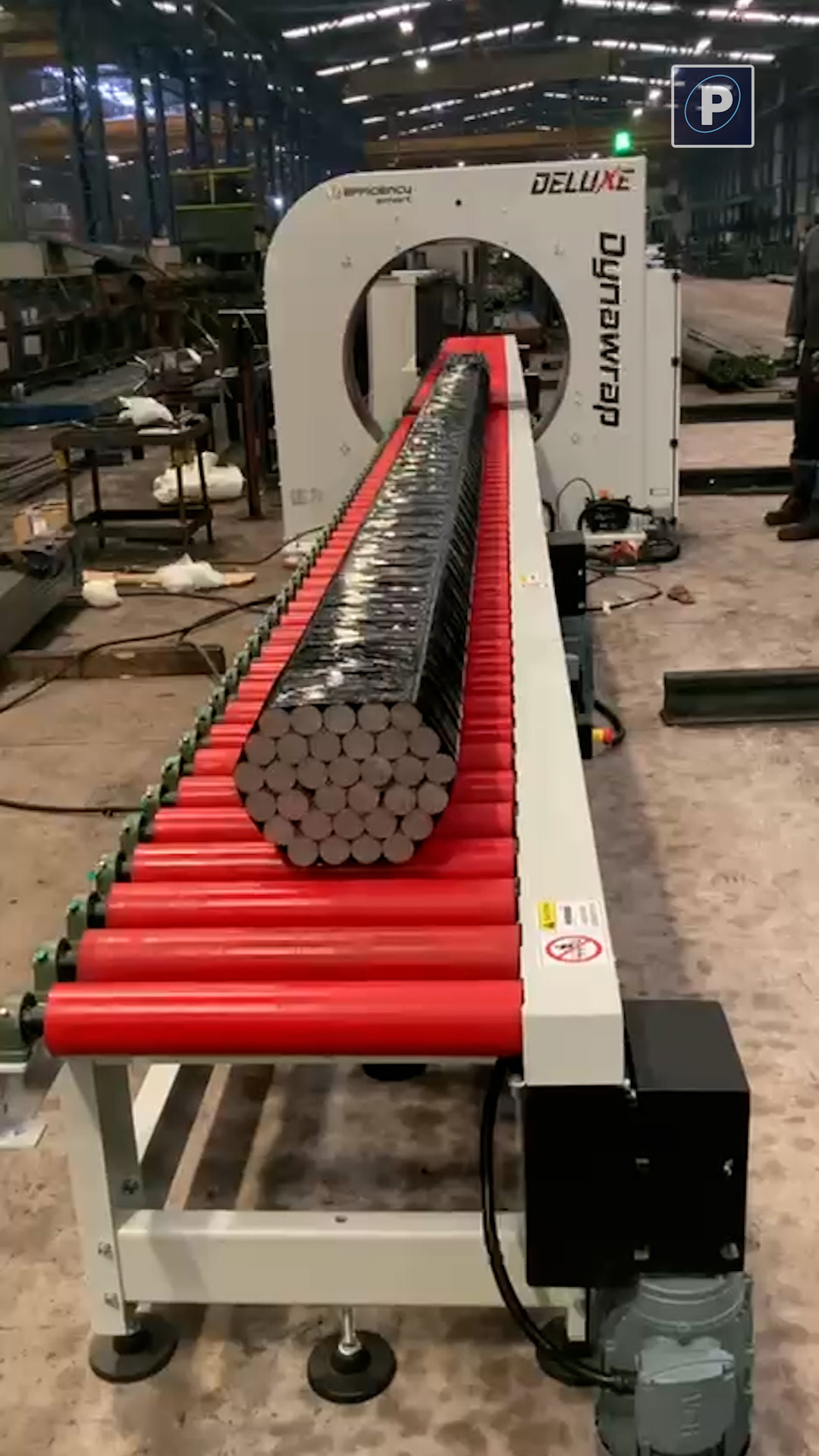

The Solution: Dedicated load support & Enterprise Integration. The Dynawrap orbital architecture keeps the massive load perfectly horizontal and completely stationary. By passing the load longitudinally on integrated conveyors and support bridges through a 60″–85.4″ clear ring, the wrapper has absolutely no length limits. Whether it is an 8-foot skid of plywood or a fully automated line for 20-foot lumber bundles, the machine secures it safely. Driven by flexible enterprise PLC architectures (Beijer, Siemens, Allen-Bradley, and Beckhoff), the system connects via EtherNet/IP or native OPC UA servers to execute direct string-based data exchanges with your WMS. This allows dynamic processing of custom lumber orders while MQTT telemetry streams real-time predictive maintenance diagnostics directly to your cloud, freeing up your forklift fleet instantly.
The Weight Bottleneck: Conveyor Collapse & Forklift Drops
In a lumber yard, everything is forklift-handled. When a 10,000-pound bundle of dimensional lumber is dropped onto an infeed by a heavy-duty diesel forklift, standard PVC and belt conveyors are instantly crushed. Moving these multi-ton bundles requires serious industrial iron.

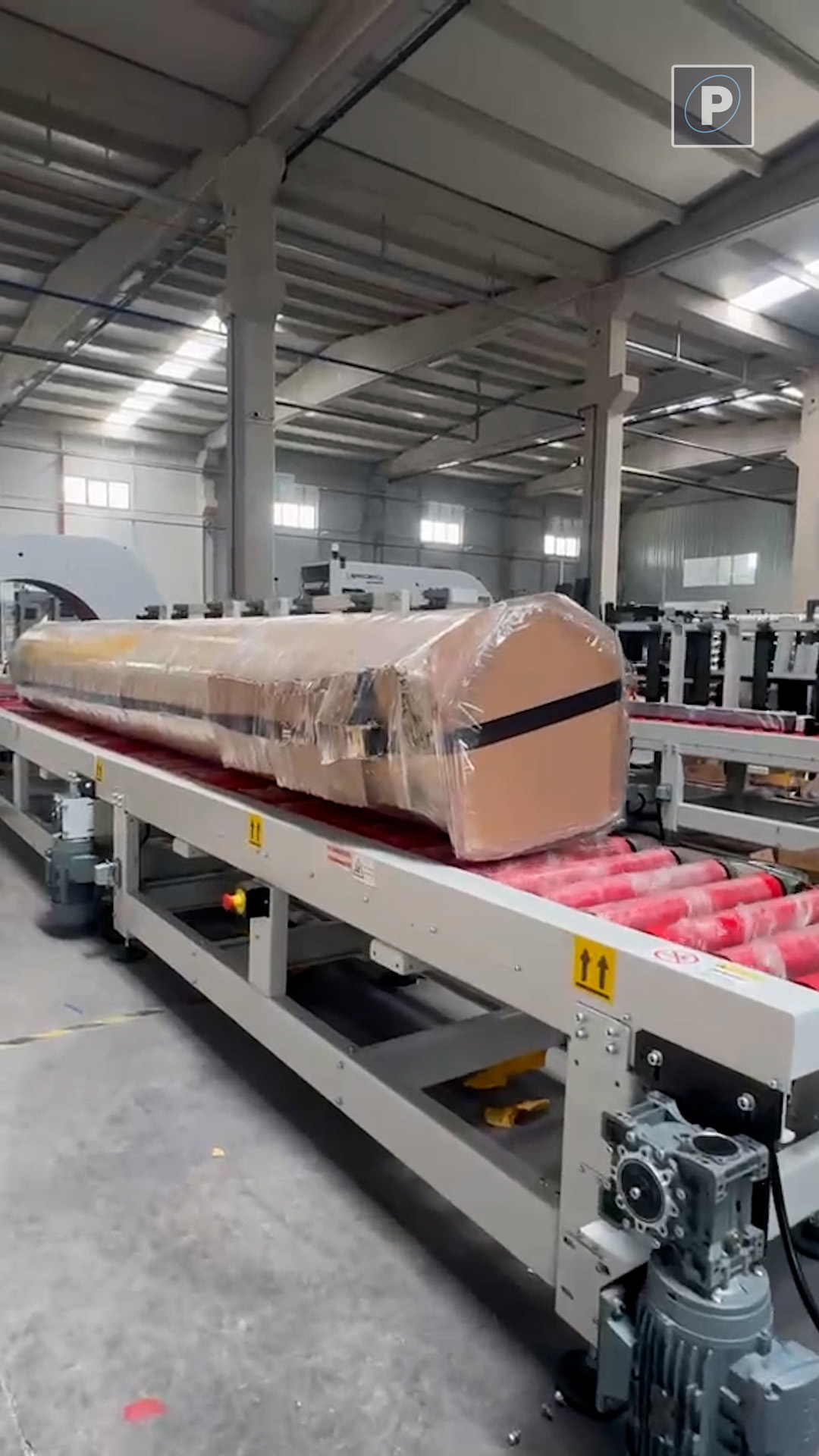

The Solution: Enterprise-grade material handling. We integrate the Pro Series wrappers directly with heavy-duty motorized steel chain conveyors, steel slat conveyors, and Vulkollan® polyurethane rollers. Engineered specifically for sawmills and wholesale yards, these continuous pass-through conveyor systems easily take the impact of forklift drops and transport payloads up to 5,000 lbs directly through the wrapping ring without hesitation.
The Storage Bottleneck: Outdoor Weathering
Lumber and engineered wood are frequently stored outdoors in lumber yards. Some orbital systems only wrap the sides, leaving the ends exposed to rain, moisture wicking, and UV degradation, warping the wood before it ever reaches the job site. *(Also bundling outdoor wooden pickets or panels? See our automated cells for Fencing Materials & Vinyl Railings).*
The Solution: True six-sided protection (top, bottom, and all sides). The massive Dynawrap Pro 2200 (with Welding Option) integrates an automated top-sheet dispenser to cover the front and back of the load before the orbital ring secures the sides. This creates a completely sealed, weatherproof 6-sided package, allowing safe long-term yard storage without product loss.
Enterprise Automation: Dynawrap LUMI™ 3D Algorithmic Vision
Achieve true recipe-free autonomy with our highly stable, non-black-box architecture. Available as an option across the Joy and Pro Series, the LUMI™ System utilizes an Intel® depth-sensing 3D camera and a dedicated embedded controller housed in a rugged industrial enclosure.
Volumetric Scanning
As irregular products enter the zone, the system executes real-time 3D scanning to determine the exact geometry and load dimensions.
Automated PLC Handshake
Our proprietary algorithm automatically calculates and pushes the optimal wrapping parameters directly to the machine's PLC.
Zero-Touch Operation
Operators simply select 'Optimum' or 'Heavy' protection modes on the HMI, and the machine handles the rest - eliminating operator error.
Industry 4.0 Ready: Robotic Cell Integration
Engineered for absolute end-of-line autonomy. Our Pro Series wrappers serve as plug-and-play nodes for dark-warehouse environments, supporting direct handshakes with FANUC, ABB, KUKA, and Universal Robots.
Native SCADA Protocols
Seamless communication via EtherNet/IP, PROFINET, Modbus TCP, OPC UA, and MQTT for centralized ERP/WMS data exchange and telemetry logging.
Automated Handshakes
Standardized execution I/O (Ready, Start, Busy, Complete, Fault) allowing upstream robots to safely load and trigger wrapping cycles.
Predictive Maintenance
Stream real-time VFD faults, motor speeds, heater temperatures, and cycle counts directly to command centers to eliminate unplanned downtime.
EHS Perimeter Safety
CIP Safety and PROFIsafe network integration, paired with hardwired optical light curtains for zero-touch, fail-safe operational security.
Lumber Yard Consumables Ecosystem
Wood products demand specific film engineering. For extreme puncture resistance against sharp lumber edges and splinters, we supply high-performance Blown Machine Stretch Film. If you are wrapping green lumber or treated wood, we supply perforated and Vented (Breathable) Stretch Film to prevent condensation buildup and eradicate the risk of 'blue stain' fungus and mold during transit.
If your product will be stored outdoors in a staging yard, deploying our UVI (Ultraviolet Inhibitor) Stretch Film is critical to prevent the plastic from degrading and the wood from sun-bleaching over extended periods.
Technical FAQ: Lumber & Engineered Wood Wrapping
How does the orbital wrapping process secure shifting lumber bundles and prevent 'spearing' during transit?
Unlike metal strapping that only binds the outer boards, the orbital ring applies a high-tension, multi-layer web of stretch film across the entire surface of the bundle. Supported by heavy-duty pneumatic top pressers, this locks the inner boards tightly in place, completely eliminating the 'spearing' effect where internal boards slide out during hard truck braking.
Can the material handling system accommodate massive 20-foot lumber stacks and withstand heavy forklift drops?
Yes. The Pro Series wrappers replace vulnerable belt conveyors with heavy-duty motorized steel chain and slat conveyors designed specifically for sawmills and wholesale yards. This robust construction absorbs extreme forklift impact drops and transports continuous payloads exceeding 5,000 lbs through the orbital ring without length limitations.
What automated weatherproofing options exist for dimensional lumber stored outdoors in retail staging yards?
For outdoor lumber storage, the Pro 2200 can be configured with an automated top-sheet dispenser combined with the W-Series welding option. This applies a waterproof barrier over the front, back, and ends of the load before the orbital ring secures the sides, creating a hermetically sealed 6-sided package that protects against rain, moisture wicking, and UV degradation.
How do the wrapping cells integrate into automated mill environments and execute predictive maintenance?
The systems operate on enterprise PLCs (Siemens, Allen-Bradley, Beckhoff) connecting natively via EtherNet/IP or OPC UA. This architecture executes direct string-based WMS data exchanges to automatically adjust wrapping parameters for varied lumber cuts, while MQTT telemetry streams real-time VFD faults and motor load data to your cloud for predictive maintenance.
Eliminate Banding Damage & Tipped Loads
From custom chain conveyors capable of taking heavy forklift drops to infinite-length orbital passing, our automated cells are built for the sheer tonnages of the lumber industry. Tell us if you are wrapping 12-foot dimensional lumber, 16-foot oversized cross-sections or 20-foot heavy timbers and whether you require perforated breathable films for green wood or 6-sided moisture barriers, and if your facility needs smart IoT monitoring. Please specify your maximum bundle weight and forklift loading requirements. Request a custom facility review today.
