Dynawrap Joy 1550 Ventana
Specialized Orbital Wrapper for Windows, Doors, and Exterior Shutters
The Dynawrap Joy 1550 Ventana is a highly customized horizontal solution often referred to as a "frame wrapper." Its unique narrow-track loading design and lateral stabilization guides allow tall windows, doors, and shutters to roll effortlessly through the orbital ring on-edge for 360-degree protection.
Featuring an expansive 2900mm infeed and outfeed system, the Ventana automates the transit of oversized architectural units, pulling them to the end of the line for immediate offloading and shipping.
Wrapping Flat Panels or Deep Cabinets?
The Ventana is strictly engineered with a 300mm narrow-track conveyor for items running on-edge. If you are wrapping wide, flat-bottomed panels, 4x8 sheet goods, or deep casework, please see our Standard Dynawrap Joy 1550.
Included Standard Features
Pre-program custom window recipes. Includes remote access for instant factory-level PLC troubleshooting.
Specialized side support rollers keep tall, narrow window units perfectly upright and stable during rotation.
Bespoke lengths and non-marring surfaces configured for window handling, driven by VFDs for seamless line integration.
Clean film termination for retail aesthetics paired with ultra-fine mechanical braking to prevent frame bowing.
Universal, Non-Proprietary Components
We refuse to trap you in a proprietary parts ecosystem. The Joy 1550 Ventana is powered by an industry-standard Beijer PLC (Sweden) and built with globally sourced, off-the-shelf Tier-1 components (Schneider Electric, Omron). If a part is ever damaged on your floor, your maintenance team can source the exact replacement locally the same day. No black-box motherboards. No forced shipping delays. Absolute, cost-effective uptime.
Quality Assurance & Commissioning: Pre-shipment video verification / Factory Acceptance Testing (FAT) available upon request for automated cell integrations. Every system ships with a full digital commissioning packet to streamline electrical and PLC deployment.
Common Joy 1550 Ventana Applications
Vinyl, Wood, and Aluminum units - from residential to oversized architectural shapes.
Securing door panels and frames for transit, preventing glass-to-glass contact issues.
Full-surface protection for plantation shutters, decorative exterior louvers, and bahama-style units.
Complete protection for pre-hung door units including hardware and decorative trim.
Dynawrap LUMI™ 3D Algorithmic Vision (Optional)
Achieve true recipe-free autonomy with highly stable, non-black-box architecture. The optional LUMI™ System utilizes an Intel® depth-sensing 3D camera and a dedicated embedded controller housed in an industrial enclosure. As product enters the zone, the system executes volumetric scanning to determine exact geometry. The algorithm then automatically calculates and pushes the optimal wrapping parameters directly to the PLC. Operators simply select 'Optimum' or 'Heavy' protection modes, and the machine handles the rest.
Engineered for EHS Safety & Operator Ergonomics
EHS-Compliant Tip-Hazard Prevention: Wrapping tall, heavy fenestration units (like glass doors and windows) on edge introduces severe tip-and-crush hazards for floor personnel. The Ventana eliminates this liability by functioning as a fully stabilized automated cell. Utilizing a specialized narrow-track conveyor and lateral frame guides, the machine keeps towering glass units perfectly upright. Combined with PLC-controlled Soft-Start/Soft-Stop rotation logic, the Ventana ensures high-end residential window units are secured tightly without sudden jolts that could shatter glass or destabilize the load.
The Economics of Automation
By replacing inconsistent manual hand-wrapping with mechanized tension control, this system ensures every millimeter of stretch film is utilized to its maximum yield. Reduce your film consumption by up to 25% while eliminating the ergonomic liabilities, transit damage, and labor hours associated with manual load securing.
Recommended Stretch Film
The Joy 1550 Ventana is optimized for 6.7" Cast Clear Film. Use Blown Film for maximum puncture resistance on large frames and glass-to-wood bundles.
| Technical Specifications |
| Machine Features | |
| Automation Level | Fully Automatic / PLC Controlled |
| Stretch Ring Diameter | 1550 mm (61") |
| Standard Dimensions (W x H x L) | 2300 x 2150 x 6550 mm (90.5" x 84.6" x 257.8") |
| Machine Weight | 1350 kg (2,976 lbs) |
| Max Rotation Speed | 75 RPM |
| Film Delivery System | Mechanical Stretch (50-70%) with Spring-Based Constant Tensioning System (CTS) |
| Tension Control Advantage | Automated slack compensation prevents corner-crush on rectangular and irregular profiles |
| Installed Total Power | 4.7 kW (Single Electric Motor) |
| Power Supply Voltage | 220V 3-Phase / 380V 3P+N / 480V 3-Phase |
| Approx. Full Load Amps (FLA) | 18A-20A (220V) / 10.5A-12A (380V) / 8.5A-9.5A (480V) |
| Pneumatic Air Requirements | Operating Pressure: 6 Bar (87 PSI) | Peak Consumption: ~30 L/min (~1.0 CFM) |
| Minimum Packaging Size | 11 x 18 x 450 mm (0.43" x 0.70" x 17.7") |
| Industrial Control & Systems Integration Specifications | |
| PLC / HMI / Drivers | Standard: Beijer Electronics (Sweden) | Options: Siemens, Allen-Bradley (Rockwell Automation), or Beckhoff (Flexible architecture based on project requirements) |
| 3D Algorithmic Vision (Optional) | LUMI™ System: Intel® 3D Depth-Sensing Camera with Embedded Logic Controller | Executes volumetric dimensional scanning and automatically pushes optimized wrapping parameters to the PLC. |
| Fault Detection & Predictive Maintenance | Predictive Maintenance Diagnostics: Network access to VFD status/faults, motor speeds, current loads, heater temperatures, and cycle counters. Stretch Secure System (Optional): Auto-stops on film break. Film Warning System (Optional): Pre-alerts for zero-downtime roll changes. |
| ERP & WMS Integration (Optional) | String-Based Data Exchange: Receive production orders, barcode data, and shipping labels via standard protocols. Labeling System: Scans bare product and auto-reprints identical barcode on exterior stretch film for ASRS induction. |
| Integration Protocols (SI Ready) | EtherNet/IP, PROFINET, EtherCAT, Modbus TCP, native OPC UA, MQTT |
| SCADA / MES Connectivity | Native OPC UA Server capabilities for direct machine data access without external gateways (PLC dependent). |
| Cloud Telemetry | MQTT-based communication for Industry 4.0 applications (Machine status, production statistics, film consumption, alarm history). |
| Robot Arm Compatibility | Direct Handshake Ready for FANUC, ABB, KUKA, Universal Robots (UR), and Yaskawa Industrial & Collaborative Arms |
| Robotic Cell Handshakes | Ready, Start, Busy, Complete, Fault, Reset, Recipe Select, Product Present Confirmation, Wrapped-Ready Signal, Reject Bypass Mode, Remote Mode (Master Override) |
| Safety Architecture | CIP Safety, PROFIsafe, Robot-Safe Hardwired I/O Interlocks, Light Curtain & Safety Scanner Integration |
| Commissioning Packet | Included: Full Electrical Schematics (PDF & CAD), I/O List, PLC Tag Map, Robot Handshake Documentation, Ethernet Object Map, PLC/HMI Source Code Backups |
| Conveyor Drive System | Belt-Driven Motorized Infeed & Outfeed Conveyors synchronized via Variable Frequency Drives (VFD) for Speed Matching |
| Standard Automation Module | Automatic Film Clamp & Cut | Mechanical Tensioner | Remote Diagnostics Enabled |
| Motors / Reducers | Volt Motor (TR) / Yilmaz or Polat (TR) |
| Motorized Belt Conveyor System | Megadyne (Italy) |
| Safety / Protection | Schneider Electric (E-Stop, Contactor, SSR) |
| Power Supply | Omron (Japan) |
| Sensors | Pepperl+Fuchs (Germany) |
| EHS Safety Features | Micro-Switch Interlocked Film Door, Emergency Stop |
| Certifications & Standards | ISO 13849-1 (PLd) Compliant | cULus Listed | CSA Approved | CE Certified |
| Conveyor Belt Features | |
| Conveyor Height (Adjustable) | 300 - 450 mm (11.8" - 17.7") | Custom Heights Fully Engineered to Match Robotic Cells & Automated Lines |
| Infeed/Outfeed Conveyor Length | 2900 mm (114.1") |
| Conveyor Width | 300 mm (11.8") |
| Max Load Capacity | 150 kg/m (100 lbs/ft) Standard Belt Rating | Conveyor structure and load capacity are fully upgradeable to heavy-duty steel slat, chain, or powered roller variants for extreme weight requirements. |
| Conveyor Roller Material Upgrades | Vulkollan Polyurethane (Extreme load/anti-abrasion) | Non-Marring Rubber (High grip/delicate finishes) | Galvanized or Stainless Steel (Heavy industrial payloads) |
| Product Centering & Alignment | Adjustable Side Guide Rollers available in manual (fixed) or fully automated pneumatic configurations for zero-touch product centering. |
| End-of-Line Conveyor Safety | Optional Outfeed Photoeye Sensor (Automatically halts the conveyor drive to prevent wrapped products from overrunning the discharge table) |
| Stretch Film (PE/PVC) Specs | |
| Stretch Film Width Compatibility | 125 / 167 / 170 mm (5" / 6.5" / 6.7") |
| Max Film Roll Exterior Diameter | 230 mm (9") |
| Roll Core Diameter | 76 mm (3") |
| Recommended Film Thickness | 80 gauge (20 micron), 90 gauge (23 micron), 120 gauge (30 micron), 140 gauge (35 micron) |

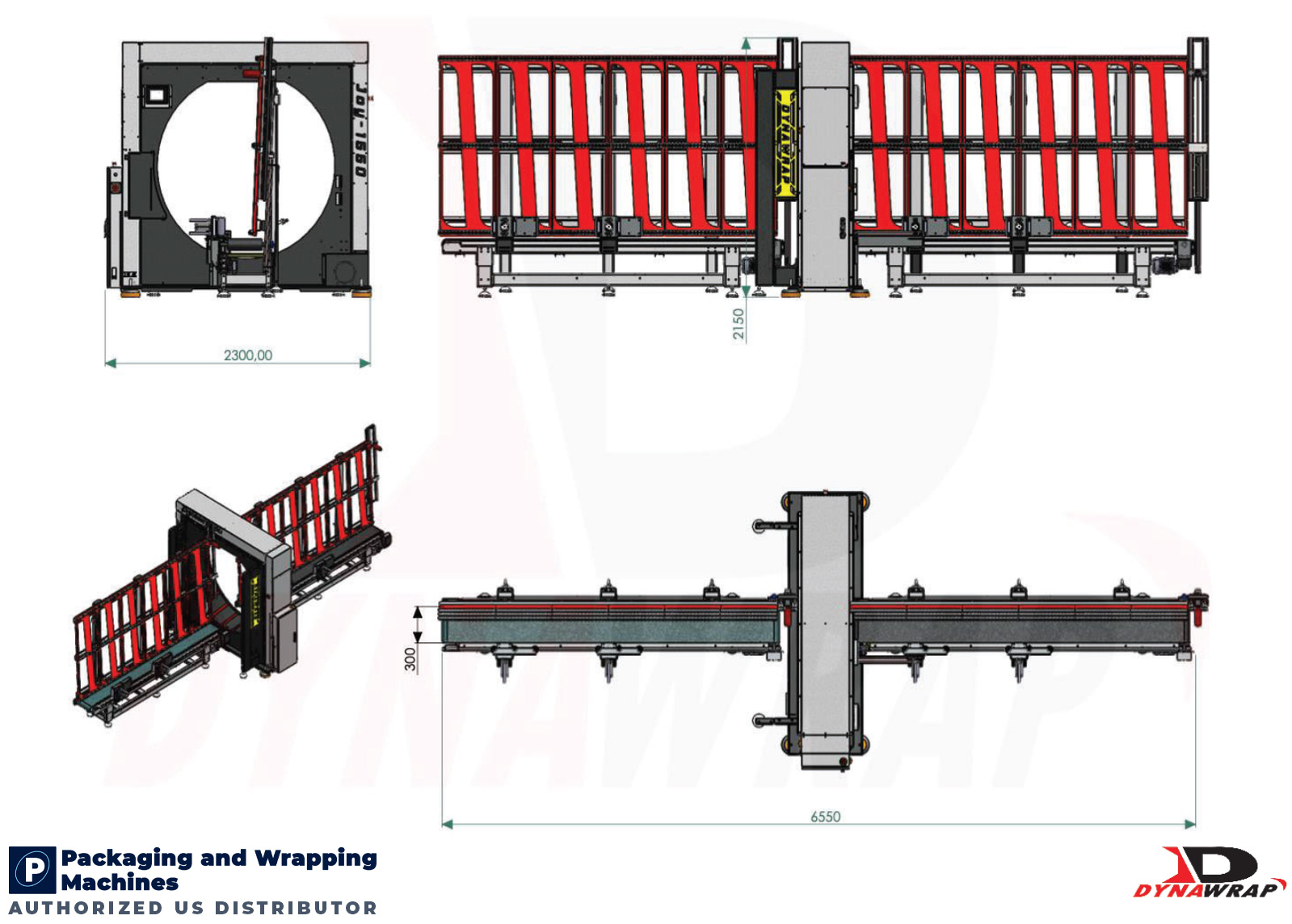

Review the dimensional footprint layout below. The Joy 1550 Ventana is specifically engineered for vertical profiles (windows, doors, and shutters). Note the highly specialized 300mm narrow-track conveyor system designed to support these tall, thin loads on edge.
- Total System Length (incl. infeed/outfeed): 6,550 mm (257.8")
- Core Chassis Width: 2,300 mm (90.5")
- Specialized Narrow-Track Conveyor Width: 300 mm (11.8")
- Core Chassis Height: 2,150 mm (84.6")
Factory Warranty & Lifecycle Architecture: Every system ships with an industry-standard 1-Year Comprehensive Systems Warranty. More importantly, because we refuse to trap customers in proprietary parts ecosystems, all electrical, pneumatic, and automation controls are built exclusively with open-market Tier-1 components (Schneider Electric, Omron, Beijer, Pepperl+Fuchs). Replacement parts can be sourced locally same-day for the entire operational lifespan of the machine. Review our direct-to-human SLA and service protocol
Dynawrap Joy 1550 Ventana Technical FAQ
What are the maximum product dimensions for the Joy 1550 Ventana?
The Joy 1550 Ventana accommodates a maximum passing width of 1580 mm (62.2") and a maximum passing height of 950 mm (37.4"). It features a highly specialized 300mm narrow-track conveyor designed strictly to wrap tall, vertical fenestration products on-edge. For flat panels or deep casework, you must use the standard Joy 1550.
What are the exact facility power and pneumatic utility requirements?
The machine requires an installed total power of 4.7 kW and can be configured for 220V 3-Phase, 380V 3P+N, or 480V 3-Phase power supplies. The pneumatic systems require a continuous operating pressure of 6 Bar (87 PSI) with a peak air consumption of ~30 L/min (~1.0 CFM).
How does the Ventana stabilize tall, heavy windows during rotation?
The system utilizes specialized non-marring lateral frame guides (side rollers) built into the 2900mm infeed and outfeed tables. Combined with PLC-controlled Soft-Start/Soft-Stop orbital rotation, this ensures heavy exterior glass doors and shutters remain perfectly upright without tip-hazards or sudden jolts.
Does the Ventana integrate with existing automated factory lines?
Yes, the standard Beijer PLC features native EtherNet/IP, PROFINET, Modbus TCP, and OPC UA protocols. The VFD-synchronized narrow-track conveyors allow for seamless upstream speed-matching and direct digital handshakes with automated factory cells.
Is the Dynawrap Joy 1550 Ventana UL and CSA listed?
Yes, all electrical panels and components are fully cULus and CSA certified for North American facility integration.
