Dynawrap Joy 1250W
Mid-Sized Hybrid Protective Packaging System (Bubble & Stretch)
The Dynawrap Joy 1250W revolutionizes end-of-line packaging by combining two labor-intensive processes into a single automated step. This cost-effective hybrid system first encapsulates your product in a protective layer of air bubble film or PE foam, heat-welds the seam, and then passes it through the orbital stretch ring for final containment.
It is the ideal solution for protecting scratch-sensitive products like pre-finished interior doors, high-gloss RTA furniture panels, and framed glass mirrors.
Need complex line integration? Compare this to our highly customized Pro Series 1400W.
Wrapping 48-Inch (4x8) Plywood or Panels?
A standard 48-inch (1219mm) sheet physically cannot pass through the Joy 1250W's 1170mm maximum width limit. For standard 4x8 sheet goods or fully assembled furniture requiring bubble wrap, you must size up to the Joy 1550W.
Integrated Protective Welding System & By-Pass Cycle
The defining feature of the W-Series is the automated protective film curtain. A digitally controlled sealing bar operates precisely between 140°C - 160°C to encapsulate the product in bubble wrap or PE foam before the stretch film is applied.
Need to wrap a product without bubble wrap? Operators can simply select the "By-Pass Cycle" on the HMI. The machine will keep the welding unit completely off (cold) and operate exclusively as a high-speed orbital stretch wrapper, granting maximum flexibility on the factory floor.
Included Standard Features
Adjustable 100-150°C heat sealer for PE film/bubble wrap, paired with automated hands-free film termination.
Tap to auto-adjust tension, RPM, and weld times. Includes remote access for instant factory-level PLC troubleshooting.
High-traction belt-driven system utilizing Variable Frequency Drives (VFD) for seamless upstream line speed-matching.
Pneumatic stabilization to hold wide panels securely, featuring a highly reliable mechanical stretch tension ring.
Universal, Non-Proprietary Components
We refuse to trap you in a proprietary parts ecosystem. The Joy 1250W is powered by an industry-standard Beijer PLC (Sweden) and built with globally sourced, off-the-shelf Tier-1 components (Schneider Electric, Omron). If a part is ever damaged on your floor, your maintenance team can source the exact replacement locally the same day. No black-box motherboards. No forced shipping delays. Absolute, cost-effective uptime.
Quality Assurance & Commissioning: Pre-shipment video verification / Factory Acceptance Testing (FAT) available upon request for automated cell integrations. Every system ships with a full digital commissioning packet to streamline electrical and PLC deployment.
Common Joy 1250W Applications
Provides critical scratch and impact resistance for pre-finished interior doors.
Automated edge protection for RTA cabinetry panels, shelving kits, and desktops.
Dual-layer defense against moisture and transit friction for architectural millwork.
Ensures absolute protection and stability for heavy, fragile framed glass items.
Flawless Dual-Layer Protection for Premium Doors
The Challenge: Pre-finished residential and commercial doors are highly susceptible to transit scuffs, surface abrasions, and corner crushing. Manually cutting, taping, and applying protective bubble wrap to each heavy door destroys line throughput and creates severe ergonomic strain for operators.
The Solution: The Dynawrap Joy 1250W completely automates the dual-layer packaging sequence.
- In-Line Protective Welding: As the heavy door rolls into the wrapping zone, the digital sealing bar automatically drapes and welds a continuous, impact-resistant sleeve of air bubble film around the product.
- Immediate Unitization: Milliseconds later, the 1260mm orbital ring applies high-tension clear stretch film directly over the bubble wrap, locking the protective layer firmly in place.
- Zero Manual Prep: The synchronized VFD motorized belt conveyors smoothly pull the door through the entire cell. The machine finishes with a hands-free automated film cut-and-clamp, delivering a scuff-proof package in a single pass.
Instant bubble sleeve.
Impact & scuff defense.
1-pass hybrid packaging.
See more door wrapping cells: Explore our complete Architectural Doors & Millwork Guide →
Dynawrap LUMI™ 3D Algorithmic Vision (Optional)
Achieve true recipe-free autonomy with highly stable, non-black-box architecture. The optional LUMI™ System utilizes an Intel® depth-sensing 3D camera and a dedicated embedded controller housed in an industrial enclosure. As product enters the zone, the system executes volumetric scanning to determine exact geometry. The algorithm then automatically calculates and pushes the optimal wrapping parameters directly to the PLC. Operators simply select 'Optimum' or 'Heavy' protection modes, and the machine handles the rest.
Engineered for EHS Safety & Operator Ergonomics
EHS-Compliant Zero-Prep Hybrid Automation: The Joy 1250W eliminates the severe ergonomic strain and cut hazards associated with manual foam taping and wielding box cutters. Operating as a safe, continuous-flow automated cell, the machine draws from a massive 1250mm roll of protective bubble wrap or PE foam. The digital hot-wire sealing bar safely welds a continuous envelope around the product just milliseconds before the automated orbital ring secures the package with high-tension stretch film - delivering dual-layer protection with zero manual exertion.
The Economics of Hybrid Automation
Manually cutting and taping foam or bubble wrap around casework requires multiple operators and creates severe production bottlenecks. By combining protective welding and stretch wrapping into a single, automated 1-minute cycle, you immediately recapture lost labor hours while reducing your stretch film consumption by up to 25% via mechanized tension control.
Recommended Stretch Film
The Joy 1250W is optimized to apply 6.7" (170mm) Cast Clear Machine Film over your preferred base layer of bubble wrap or PE foam. For bundling raw wood or metal beneath the foam, High-Performance Blown Film is recommended for superior tear resistance.
| Technical Specifications |
| Machine Features | |
| Automation Level | Fully Automatic / PLC Controlled Hybrid System |
| Wrapping Ring Diameter (Net Passing) | 1260 mm (49.6") |
| Operational Dimensions (W x H x L) | 2050 x 2650 x 4250 mm (80.7" x 104.3" x 167.3")* |
| Max Rotation Speed | 70 RPM |
| Film Delivery System | Mechanical Stretch (50-70%) |
| Total Weight | 1050 kg (2,314 lbs) |
| Installed Total Power | 3.0 kW |
| Power Supply Voltage | 220V 3-Phase / 380V 3P+N / 480V 3-Phase |
| Approx. Full Load Amps (FLA) | 9.5A-12A (220V) / 5.5A-6.5A (380V) / 4.5A-5.5A (480V) |
| Pneumatic Air Requirements | Operating Pressure: 6 Bar (87 PSI) | Peak Consumption: ~20 L/min (~0.7 CFM) |
| Industrial Control & Systems Integration Specifications | |
| PLC / HMI / Drivers | Standard: Beijer Electronics (Sweden) | Options: Siemens, Allen-Bradley (Rockwell Automation), or Beckhoff (Flexible architecture based on project requirements) |
| 3D Algorithmic Vision (Optional) | LUMI™ System: Intel® 3D Depth-Sensing Camera with Embedded Logic Controller | Executes volumetric dimensional scanning and automatically pushes optimized wrapping parameters to the PLC. |
| Fault Detection & Predictive Maintenance | Predictive Maintenance Diagnostics: Network access to VFD status/faults, motor speeds, current loads, heater temperatures, and cycle counters. Stretch Secure System (Optional): Auto-stops on film break. Film Warning System (Optional): Pre-alerts for zero-downtime roll changes. |
| ERP & WMS Integration (Optional) | String-Based Data Exchange: Receive production orders, barcode data, and shipping labels via standard protocols. Labeling System: Scans bare product and auto-reprints identical barcode on exterior stretch film for ASRS induction. |
| Integration Protocols (SI Ready) | EtherNet/IP, PROFINET, EtherCAT, Modbus TCP, native OPC UA, MQTT |
| SCADA / MES Connectivity | Native OPC UA Server capabilities for direct machine data access without external gateways (PLC dependent). |
| Cloud Telemetry | MQTT-based communication for Industry 4.0 applications (Machine status, production statistics, film consumption, alarm history). |
| Robot Arm Compatibility | Direct Handshake Ready for FANUC, ABB, KUKA, Universal Robots (UR), and Yaskawa Industrial & Collaborative Arms |
| Robotic Cell Handshakes | Ready, Start, Busy, Complete, Fault, Reset, Recipe Select, Product Present Confirmation, Wrapped-Ready Signal, Reject Bypass Mode, Remote Mode (Master Override) |
| Safety Architecture | CIP Safety, PROFIsafe, Robot-Safe Hardwired I/O Interlocks, Light Curtain & Safety Scanner Integration |
| Commissioning Packet | Included: Full Electrical Schematics (PDF & CAD), I/O List, PLC Tag Map, Robot Handshake Documentation, Ethernet Object Map, PLC/HMI Source Code Backups |
| Conveyor Drive System | Belt-Driven Motorized Infeed & Outfeed Conveyors synchronized via Variable Frequency Drives (VFD) for Speed Matching |
| Standard Automation Module | Automatic Film Clamp & Cut | Mechanical Tensioner | Remote Diagnostics Enabled |
| Motors / Reducers | Volt Motor (TR) / Yilmaz or Polat (TR) |
| Motorized Belt Conveyor System | Megadyne (Italy) |
| Safety / Protection | Schneider Electric (E-Stop, Contactor, SSR) |
| Power Supply | Omron (Japan) |
| Sensors | Pepperl+Fuchs (Germany) |
| EHS Safety Features | Micro-Switch Interlocked Film Door, Emergency Stop |
| Certifications & Standards | ISO 13849-1 (PLd) Compliant | cULus Listed | CSA Approved | CE Certified |
| Product Size To Pack | |
| Max Length | No Limit |
| Min Length with Bridge | 400 mm (15.7") |
| Max Passing Dimensions | Panel: Max W: 1170 mm (46.0") | H: 200 mm (7.8")
Cabinet: W: 750 mm (29.5") | Max H: 620 mm (24.4")
|
| Conveyor Belt Features | |
| 3-Stage Conveyor System (Length) | Infeed: 950 mm (37.4") / Welding Zone: 1800 mm (70.8") / Outfeed: 950 mm (37.4") |
| Conveyor Belt Width | 750 mm (29.5") |
| Max Conveyor Speed | 12 m/min (39.3 ft/min) |
| Max Load Capacity | 80 kg/m (~54 lbs/ft) Standard Belt Rating | Conveyor structure and load capacity are fully upgradeable to heavy-duty steel slat, chain, or powered roller variants for extreme weight requirements. |
| Conveyor Roller Material Upgrades | Vulkollan Polyurethane (Extreme load/anti-abrasion) | Non-Marring Rubber (High grip/delicate finishes) | Galvanized or Stainless Steel (Heavy industrial payloads) |
| Product Centering & Alignment | Adjustable Side Guide Rollers available in manual (fixed) or fully automated pneumatic configurations for zero-touch product centering. |
| End-of-Line Conveyor Safety | Optional Outfeed Photoeye Sensor (Automatically halts the conveyor drive to prevent wrapped products from overrunning the discharge table) |
| Working Height (Adjustable) | 720 - 880 mm (28.3" - 34.6") | Custom Heights Fully Engineered to Match Robotic Cells & Automated Lines |
| Protective Film & PE Foam System (W-Series Hybrid) | |
| Supported Protective Materials | PE Film, Foam, PE Air Bubble, PVC, Shrink Film |
| Digital Welding Temperature | 100°C - 150°C (212°F - 302°F) |
| Max Protective Film Width (Bubble/Foam) | 1250 mm (49.2") |
| Bubble Film Max Roll Diameter | 700 mm (27.5") |
| Bubble Film Core Diameter | 76 mm (3") |
| Selectable HMI Wrapping Modes | Hybrid Armor Mode (Bubble/Foam + Stretch) | By-Pass Cycle (Stretch wrapping only; welding bar remains cold) |
| Stretch Film (PE/PVC) Specs | |
| Stretch Film Max Roll Diameter | 190 mm (7.4") |
| Stretch Film Core Diameter | 76 mm (3") |
| Stretch Film Width Compatibility | 170 mm (6.7") |
| Recommended Film Thickness | 60 gauge (15 micron), 70 gauge (17 micron), 80 gauge (20 micron), 90 gauge (23 micron), 120 gauge (30 micron), 140 gauge (35 micron) |
| Stretch Film Max Roll Weight | 3.2 kg (7 lbs) |
| *125mm (5") rolls can also be used | |
U.S. Cabinetry Dimension Compatibility
The Joy 1250W provides a maximum 46-inch passing width, making it the perfect automation cell for standard-sized residential casework. Below is the exact RTA and fully assembled fitment guide for North American cabinetry standards.
Standard Cabinets That FIT
- Kitchen Base & Laundry:
24" Depth (Up to 36" Width) - Wall Cabinets:
12" Depth (Up to 36" Width) - Garage Cabinets:
18" Depth (Up to 36" Width) - Vanity & Office Casework:
18", 21", & 24" Depths (Up to 36" Widths)
Note: Minimum wrapping length (height passing through) is 20" (508 mm). 12" and 24" depths require centering.
Oversized Cabinets That DO NOT FIT
- Oversized Vanities & Office: 48" Widths
- Double Vanity Casework: 60" Widths
- 4x8 Sheet Goods: 48" Wide RTA Panels

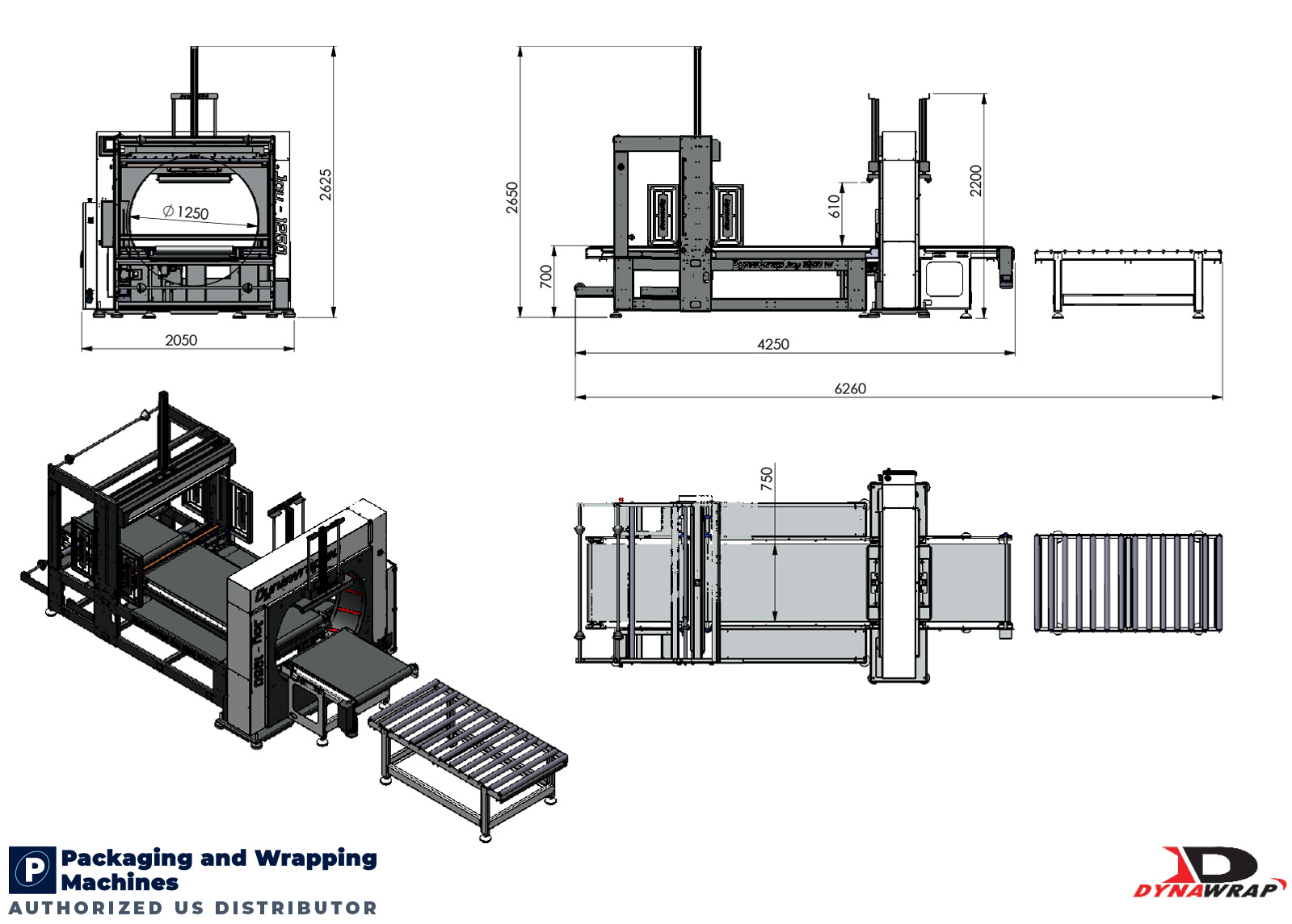

Review the true operational dimensional footprint below. Note that while base-frame shipping dimensions are often smaller, the data below represents the absolute maximum clearance required during full operation, including extended film carriages and fully raised pneumatic presses.
- Absolute Line Length (With Extended Outfeed Rollers): 6,260 mm (246.5")
- Standard Line Length (Motorized Belts Only): 4,250 mm (167.3")
- Absolute Operational Width: 2,050 mm (80.7")
- Max Welding Unit Height (Top-Press Extended): 2,650 mm (104.3")
- Max Wrapping Ring Height: 2,200 mm (86.6")
- Top-Down Press Clearance (From Conveyor Bed): 610 mm (24.0")
- Conveyor Belt Width: 750 mm (29.5")
*Note: The 1260mm diameter represents the net functional passing ring limit, whereas the physical steel ring measures 1250mm. Conveyor height is displayed at a nominal 700mm (27.5") but is adjustable via heavy-duty leveling feet up to 880mm.
Factory Warranty & Lifecycle Architecture: Every system ships with an industry-standard 1-Year Comprehensive Systems Warranty. More importantly, because we refuse to trap customers in proprietary parts ecosystems, all electrical, pneumatic, and automation controls are built exclusively with open-market Tier-1 components (Schneider Electric, Omron, Beijer, Pepperl+Fuchs). Replacement parts can be sourced locally same-day for the entire operational lifespan of the machine. Review our direct-to-human SLA and service protocol
Dynawrap Joy 1250W Technical FAQ
What are the maximum product dimensions for the Joy 1250W hybrid wrapper?
The Joy 1250W handles a maximum passing width of 1170 mm (46.0") and a maximum passing height of 620 mm (24.4"). If your fully assembled cabinetry or standard 4x8 (48-inch) panels exceed this width, you must scale up to the Joy 1550W.
What are the facility power and pneumatic utility requirements?
The hybrid system requires an installed total power of 3.0 kW and can be configured for 220V 3-Phase, 380V 3P+N, or 480V 3-Phase power supplies. The pneumatic auto-cut, dual top-press, and digital welding mechanisms require a continuous operating pressure of 6 Bar (87 PSI) with a peak air consumption of ~20 L/min (~0.7 CFM).
Can the digital welding bar be bypassed to run a standard stretch wrap cycle?
Yes, operators can select the "By-Pass Cycle" on the HMI touchscreen. This mode leaves the 100°C - 150°C digital sealing bar completely cold, allowing the machine to operate strictly as a high-speed 70 RPM orbital stretch wrapper.
How does the Joy 1250W integrate with automated conveyor lines?
The system utilizes a VFD-synchronized 3-stage motorized belt conveyor (Infeed, Welding Zone, Outfeed) totaling 3700 mm in length. It communicates directly with upstream robotics via native protocols like EtherNet/IP, PROFINET, or OPC UA, utilizing standard PLC handshakes such as 'Product Present' and 'Wrapped-Ready'.
What standard cabinet sizes fit in the Dynawrap Joy 1250W?
The Joy 1250W is the perfect fit for standard North American kitchen base cabinets (24-inch depth up to 36-inch width), wall cabinets (12-inch depth), and garage cabinets (18-inch depth) up to 36 inches wide. The minimum required wrapping length is 20 inches.
Which cabinets are too large for the Joy 1250W?
Any casework or flat-pack panel 48 inches wide or larger will not fit through the Joy 1250W's 46-inch width limit. For oversized 48-inch vanities, office cabinets, or 4x8 panels requiring bubble wrap, you must upgrade to the Joy 1550W. For 60-inch extra-wide casework, upgrade to the Pro 1900 (with welding unit).
Is the Dynawrap Joy 1250W UL and CSA listed?
Yes, all electrical panels and components are fully cULus and CSA certified for North American facility integration.
