Dynawrap Trend
High-Efficiency Turntable Pallet Wrapper with 300% Power Pre-Stretch
The Dynawrap Trend is our flagship semi-automatic turntable wrapper, engineered to bridge the gap between manual wrapping and high-speed automation. Designed for facilities wrapping up to 25 pallets per hour, it delivers consistent, professional load stability while drastically reducing film waste.
Built on a modular platform, the Trend is highly configurable to your specific warehouse requirements. While the standard 1500mm turntable handles most pallets, we offer oversized 1650mm and 1800mm diameters for wider loads. For heavy industrial applications, the reinforced base can be upgraded from a standard 1500kg capacity to 2000kg maximum loading weight.
The series features a motorized carriage that stretches film up to 300%, effectively tripling the yield of every roll. Whether you are wrapping lightweight cardboard or heavy construction materials, the Trend ensures a secure, transport-ready pallet every time.
Smart Tech: Every Trend unit is equipped with Digital Load Height Sensing and an intuitive control panel for 1-touch operation.
Industrial Warranty
Full factory support and parts availability for 24/7 operations.
Factory Configuration
Every unit is pre-programmed and tested to your specific load requirements before delivery.
Included Standard Features
6 programmable wrap cycles with adjustable turntable speed and carriage travel
Motorized carriage maximizes film yield and provides superior load containment force
Automatically detects the top of the pallet for precise, full-height wrapping coverage
Inverter-driven turntable prevents load shifting and ensures machine longevity
Universal, Non-Proprietary Components
We refuse to trap you in a proprietary parts ecosystem. The Trend series is built with globally sourced, off-the-shelf Tier-1 components. If a relay or inverter is ever damaged on your floor, your maintenance team can source the exact replacement locally the same day. No black-box motherboards. No forced overseas shipping delays. Absolute uptime.
Common Trend Applications
Securing mixed-product pallets for e-commerce, logistics, and retail distribution.
Wrapping stacked cases of water, beverages, and palletized dry goods for stable transport.
High-tension wrapping for drums, pails, and heavy chemical bags to prevent leaks.
Protecting heavy stacks of paper, magazines, and corrugated sheets from dust and moisture.
See the Trend in Action
Watch how the Power Pre-Stretch carriage handles standard pallet loads with precision. Notice the smooth turntable rotation and the automatic height-sensing technology that ensures a perfect wrap every time.
- 300% Film Efficiency
- Industrial Durability
The Economics of Power Pre-Stretch
Hand-wrapping a 6-foot pallet is not only an ergonomic nightmare, but it wastes massive amounts of un-stretched film. The Dynawrap Trend features a motorized 300% Power Pre-Stretch carriage, effectively stretching 1 foot of film into 4 feet before it ever touches the pallet. Secure your loads with maximum containment force, eliminate transit damage, and cut your consumable film costs by up to 60%.
Recommended Stretch Film
The Trend Series is optimized for 20" Cast Clear Pallet Wrap. For heavy-duty palletized loads with jagged corners, Blown Film is highly recommended.
| Technical Specifications |
| Machine Features | |
| Automation Level | Semi-Automatic / Digital PLC Control |
| Wrapping Programs | Digital Operating Panel (6 Programmable Cycles) |
| Turntable Diameter | 1500 mm (59") Std. / 1650 mm (65") Opt. / 1800 mm (71") Opt. |
| Turntable Deck Profile | Standard 75 mm (2.9") Deck Height (Loading Ramp Optional) |
| Max Loading Weight | 1500 kg (3,306 lbs) Std. / 2000 kg (4,409 lbs) Heavy Duty Opt. |
| Wrapping Height | 2200 mm (86") Std. / 2400 mm (94") / 2700 mm (106") / 3000 mm (118") Opt. |
| Total Operational Envelope (W x D x H) | 2200 x 2500 x 2330 mm (86.6" x 98.4" x 91.7") |
| Turning Diameter (XL) | 2200 mm (86.6") |
| Spool Carriage Speed | 1.3 to 5.4 m/min (4.2 to 17.7 ft/min) |
| Turntable Rotation Speed | 5 - 12 RPM |
| Output Capacity | Up to 25 Pallets / Hour |
| Power Supply Voltage | 230V 1-Phase 50/60Hz |
| Certifications & Standards | ISO 13849-1 (PLd) Compliant | cULus Listed | CSA Approved | CE Certified |
| Stretch Film Tensioning | |
| Tensioning System | Mechanical Tensioning |
| Motorized Power Pre-Stretch | Variable 150% - 300% |
| Stretch Film Specifications | |
| Recommended Film Thickness | 30 gauge (8 micron), 47 gauge (12 micron), 60 gauge (15 micron), 70 gauge (17 micron), 80 gauge (20 micron), 90 gauge (23 micron), 120 gauge (30 micron) |
| Max Film Roll Weight | 20 kg (44 lbs) |

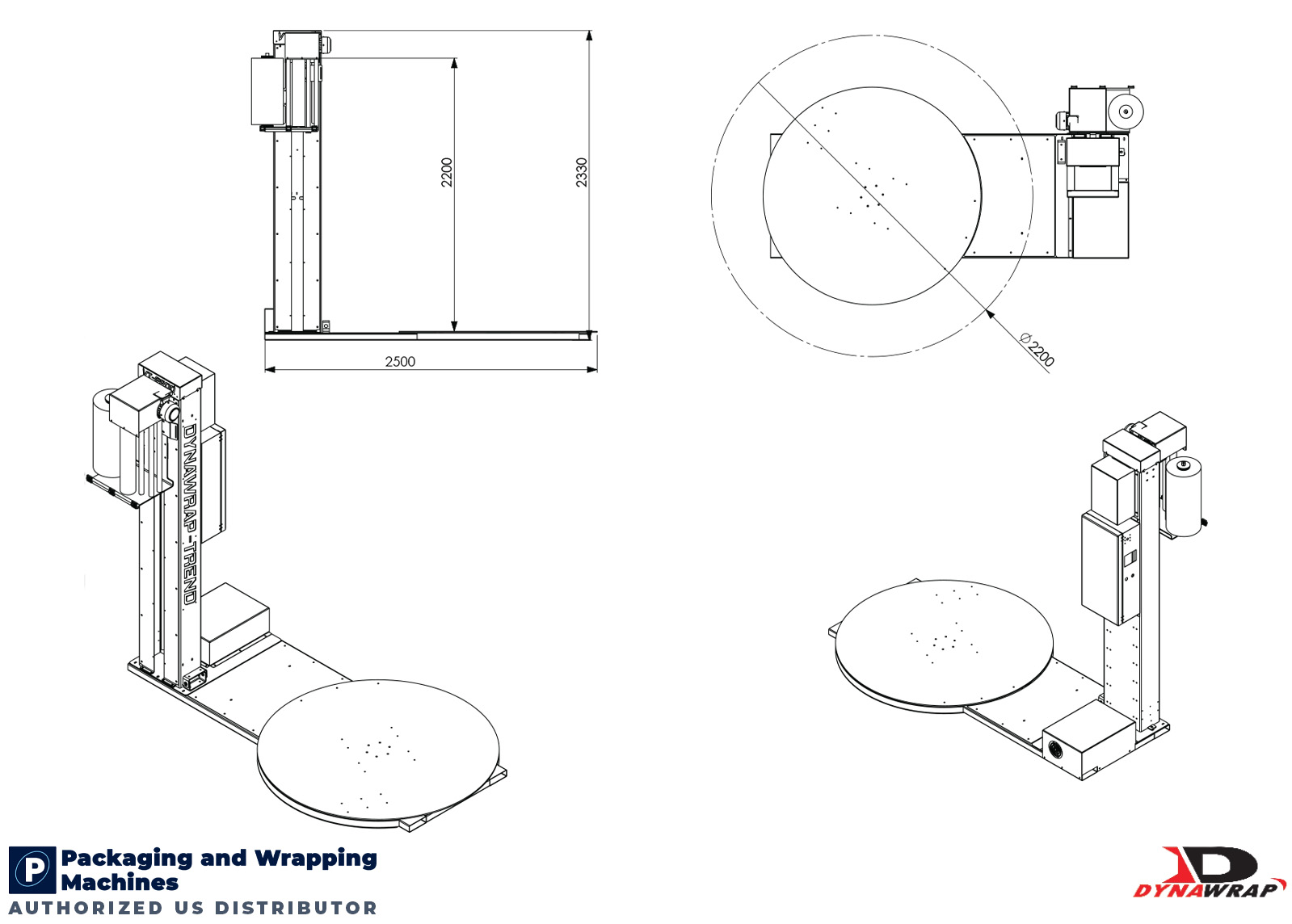

Review the dimensional layout and operational clearance zones below. The Trend series requires specific spatial allocations to accommodate high-velocity turntable rotation and full carriage travel clearance.
- Total Machine Operational Depth: 2,500 mm (98.4")
- Maximum Operational Mast Height: 2,330 mm (91.7")*
- Maximum Rotational Clearance Diameter: 2,200 mm (86.6")
*Note: Blueprint displays total structural height up to the mast tip (2,330 mm) for the standard 2,200 mm wrapping height configuration.
Factory Warranty & Lifecycle Architecture: Every system ships with an industry-standard 1-Year Comprehensive Systems Warranty. More importantly, because we refuse to trap customers in proprietary parts ecosystems, all electrical, pneumatic, and automation controls are built exclusively with open-market Tier-1 components (Schneider Electric, Omron, Beijer, Pepperl+Fuchs). Replacement parts can be sourced locally same-day for the entire operational lifespan of the machine. Review our direct-to-human SLA and service protocol
Dynawrap Trend Technical FAQ
What is the maximum output capacity of the Trend vertical pallet wrapper?
The Dynawrap Trend is engineered for high-volume logistics and can securely wrap up to 25 pallets per hour.
How does the Power Pre-Stretch carriage improve film yield?
The motorized carriage stretches the film between 150% and 300% before it is applied to the load. This mechanism maximizes the containment force while effectively tripling the yield of every stretch wrap roll, drastically reducing overall film consumption.
What is the maximum pallet height and weight this machine can handle?
The standard configuration accommodates loads up to 2200 mm (86") tall with a maximum weight of 1500 kg (3,306 lbs). The mast can be factory-upgraded to wrap pallets up to 3000 mm (118") tall, and the turntable base can be upgraded to support extreme payloads up to 2000 kg (4,409 lbs).
Does the Trend series automatically detect the height of the pallet?
Yes, every unit is equipped with a standard photo-eye height sensor. As the carriage ascends, the sensor automatically detects the top of the load to ensure precise, full-height wrapping coverage without operator intervention.
Is the Dynawrap Trend UL and CSA listed?
Yes, all electrical panels and components are fully cULus and CSA certified for North American facility integration.
